Compressors

Cattani AC200


The AC200 compressor has a teflon coated receiver, this compressor is single phase, but 3 phase is available upon request.

The AC200 compressor is designed for up to 5 surgeries, 3 running simultaneously and comes in AC200 (with dryer) and AC200Q (with dryer and sound reducing cover) models.

All AC200 compressors come with a 5 year guarantee (subject to terms and conditions).

Product Specifications

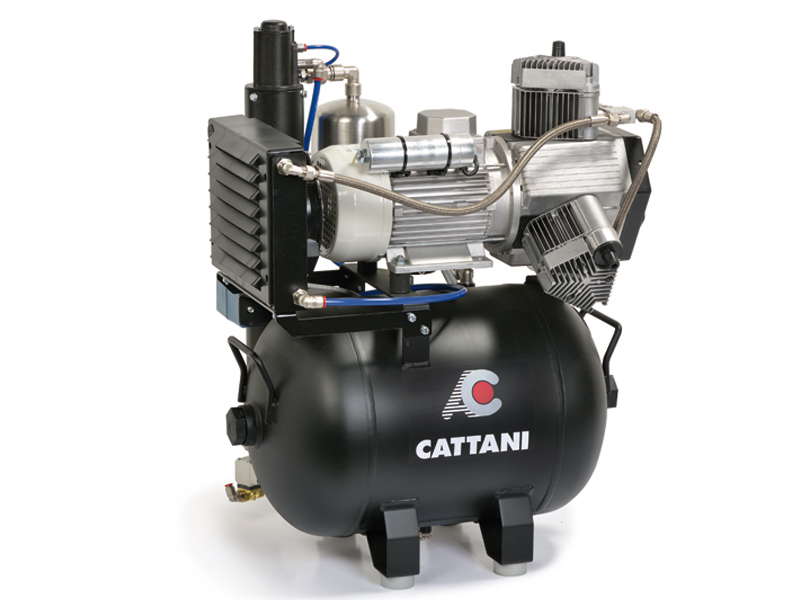

With Dryer-

No. of Surgeries: 3-5 surgery
No. of Cylinders: 2 cylinder
No. of Dryers: 1 dryer
Output power: 1~ 50Hz-1.2kW-7.7A
Produced air: 160N l/min (pressure at 5 real bar)
Air Tank Volume: 30 Litres
Noise level: 70dB(A)
Dimensions: W620 D460 H720 (mm)
Net Weight: 54Kg
Gross Weight: 68Kg

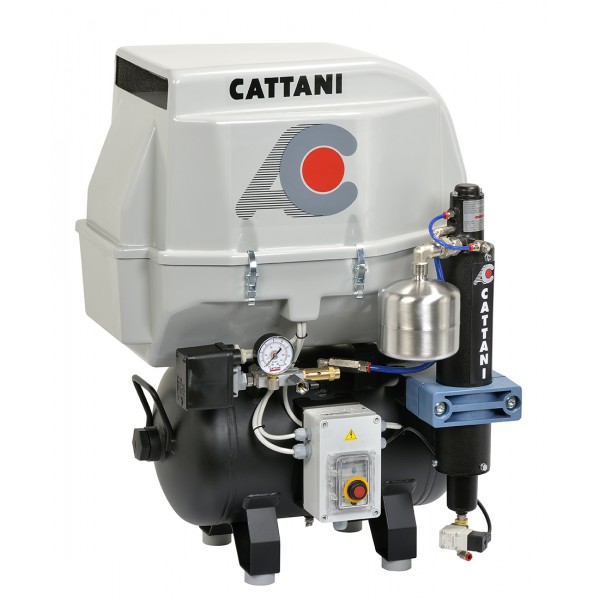

With Dryer and Sound Reducing Cover-

No. of Surgeries: 3-5 surgery
No. of Cylinders: 2 cylinder
No. of Dryers: 1 dryer
Output power: 1~ 50Hz-1.2kW-7.7A
Produced air: 160N l/min (pressure at 5 real bar)
Air Tank Volume: 30 Litres
Noise level: 63dB(A)
Dimensions: W660 D600 H860 (mm)
Net Weight: 64Kg
Gross Weight: 79Kg
